Designed for connecting cables with aluminum or copper conductors to power supply system components with voltages from 110 to 220 kV.

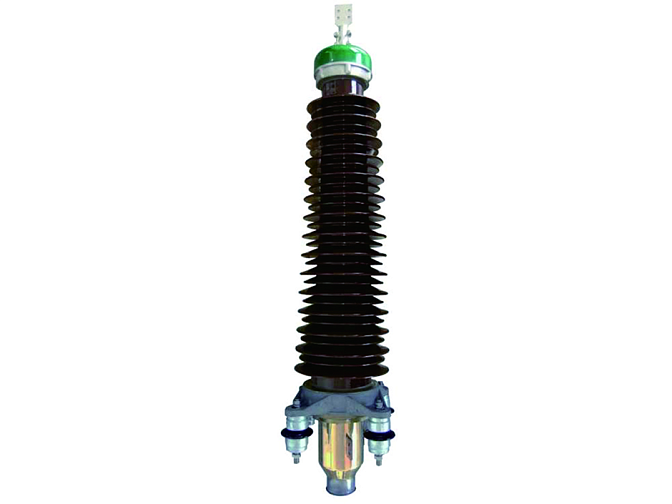

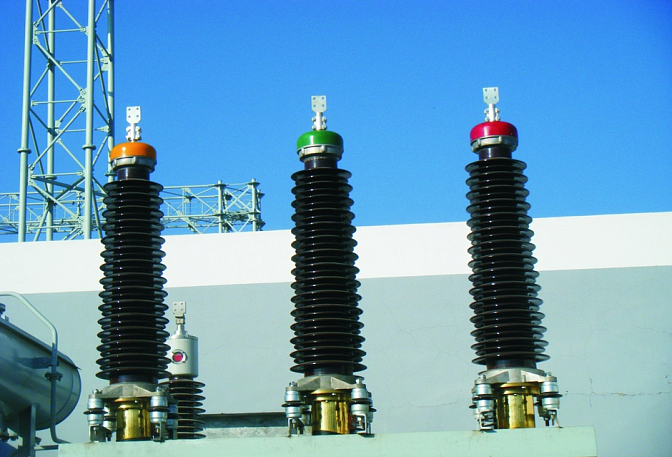

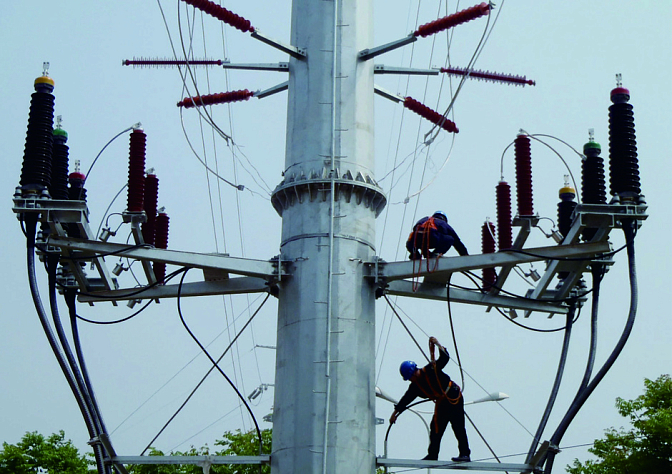

Porcelain end sleeves
High-voltage cable joints MKF for 110 kV – 220 kV
Rated voltage
110 - 220 kV
Operating conditions
-40...+60 °С
Details
The joint is a structure made of brown glazed porcelain, filled with electrical insulating oil.
A rubber or silicone stress cone is used to equalize the electric field, depending on the operating temperature conditions.
The stress cone is covered with a protective material and has a spring mechanism, ensuring reliable contact with the cable's semiconductive layer.
The ribbed insulator effectively prevents surface discharges caused by contamination.
The porcelain insulator, made of high-strength inorganic material, has excellent weather resistance, protection against tracking and arc damage, and high hydrophobicity.
MKF Construction
- Connecting terminal
- Insulator cover
- Connecting bolt
- Insulating compound
- Composite insulator
- Protective coating
- Stress cone
- Stress cone holder
- Supporting insulator
- Grounding terminal
- Cable seal
TECHNICAL SPECIFICATIONS:
MKF-110
Maximum operating voltage Uₘ, kV: 126
Rated voltage U, kV: 110
Lightning impulse voltage, kV: 550
Test voltage (15 min), kV: 160
Creepage distance, mm: >4032
MKF-220
Maximum operating voltage Uₘ, kV: 252
Rated voltage U, kV: 220
Lightning impulse voltage, kV: 1050
Test voltage (15 min), kV: 254
Creepage distance, mm: >8064
*More detailed specifications can be found in the catalog - DOWNLOAD FULL CATALOG
