Designed for connecting cables with aluminum or copper conductors to power supply system components with voltages from 110 to 220 kV.

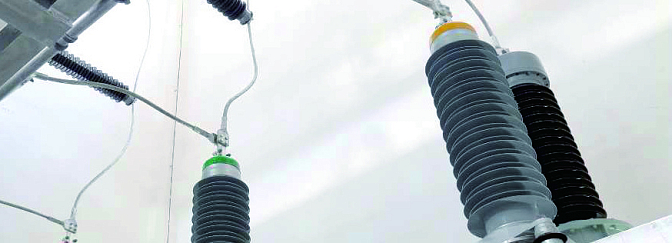

The joints are installed on poles or supports.

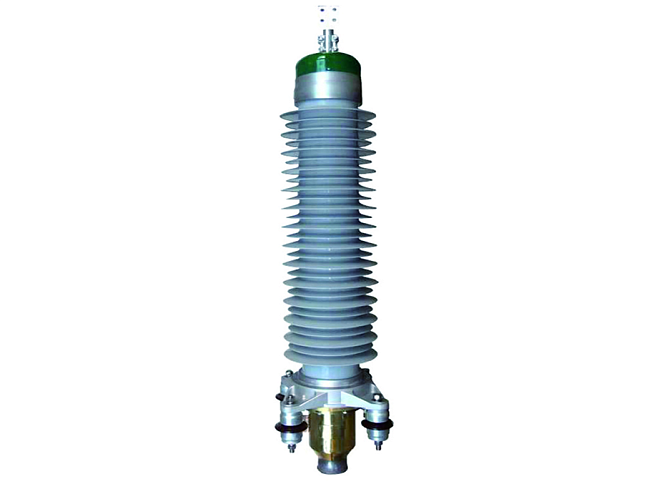

Composite end sleeves
High-voltage MCC for 110 kV – 220 kV
Rated voltage
110 - 220 kV
Operating conditions
-40...+60 °С
Details
The joint consists of a fiberglass-reinforced epoxy resin structure. The construction is filled with electrical insulating oil and covered with a silicone sleeve applied using the direct casting method.
To equalize the electric field, a rubber or silicone stress cone is used, depending on the operating temperature conditions. The stress cone is covered with a protective material and has a spring-loaded holder to ensure reliable contact with the cable's semiconducting layer.
The ribbed insulator effectively prevents surface discharges caused by contamination.
The fiberglass-reinforced tube provides high mechanical strength.
MCC Design
- Connecting terminal
- Insulator cover
- Connector
- Insulating compound
- Composite insulator
- Protective coating
- Stress cone
- Stress cone holder
- Supporting insulator
- Grounding terminal
- Cable seal
TECHNICAL SPECIFICATIONS:
MCC-110
Maximum operating voltage Uₘ, kV: 126
Rated voltage U, kV: 110
Lightning impulse voltage, kV: 550
Test voltage (15 min), kV: 160
Creepage distance, mm: >4032
Conductor cross-section, mm²: 240…1600
MCC-220
Maximum operating voltage Uₘ, kV: 252
Rated voltage U, kV: 220
Lightning impulse voltage, kV: 1050
Test voltage (15 min), kV: 254
Creepage distance, mm: >8064
Conductor cross-section, mm²: 400…2500
*More detailed specifications can be found in the catalog - DOWNLOAD FULL CATALOG
