Designed for connecting cables with aluminum or copper conductors to elements of a 110 kV power supply system.

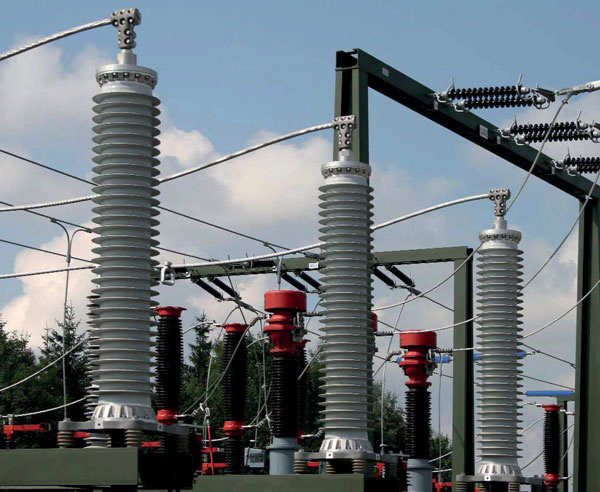

Installed on poles or supports and can operate in areas with high environmental pollution and high seismic activity.

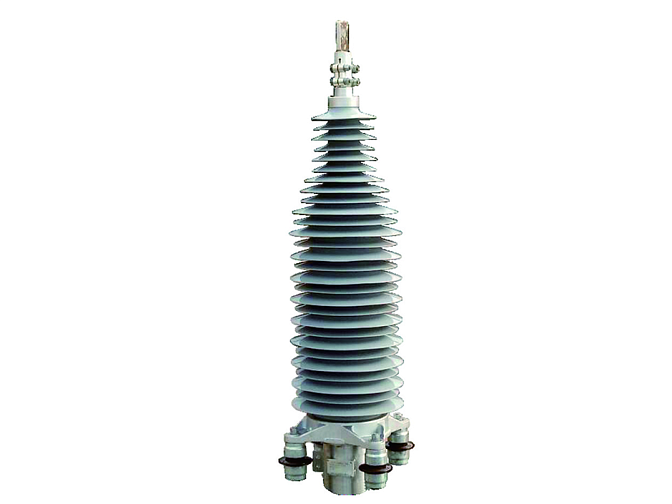

Removable end couplings
high-voltage 110 kV metal-clad switchgear
Rated voltage
110 kV
Operating conditions
-40...+60 °С
Details
The body of the joint is a separable design, consisting of a plug part at the base and an external polymer housing with a silicone sleeve, applied using direct molding technology and containing no insulating liquids.
To equalize the electric field intensity, a rubber stress cone (temperature range from -40°C to +60°C) or a silicone stress cone (temperature range from -60°C to +50°C) is used.
The insulator fins are made of high-quality silicone rubber and provide strong protection against surface discharge and UV radiation, ensuring safe and long-term operation in harsh conditions and heavily polluted environments.
The separable connection of the terminal joint and cable facilitates easy installation and maintenance.
MKS Design
- Connecting tip
- Silicone sleeve
- Composite insulator
- Connector
- Electric field stress cone
- Stress cone holder
- Support insulator
- Grounding terminal
- Cable seal
TECHNICAL SPECIFICATIONS MKS-110:
Maximum operating voltage Uₘ, kV: 126
Rated voltage U, kV: 110
Lightning impulse voltage, kV: 550
Test voltage (15 min), kV: 160
Creepage distance, mm: ≥ 4032
Conductor cross-sections, mm²: 240 ... 800
Insulation diameter range of prepared cable, mm: 56 … 86
Maximum cable sheath diameter, mm *: 120
*More detailed specifications can be found in the catalog - DOWNLOAD FULL CATALOG
