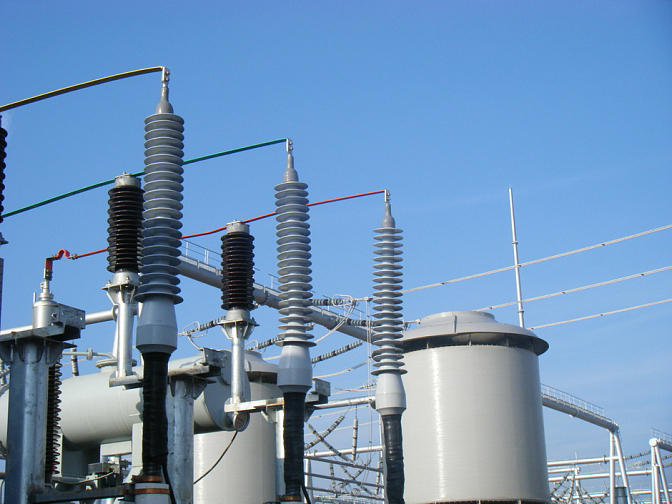

Designed for connecting cables with aluminum or copper conductors to elements of a 110 kV power supply system.
Universal end joints can be installed in any orientation.
Universal end couplings
110 kV high-voltage metal-clad switchgear
Rated voltage
110 kV
Operating conditions
-40...+60 °С
Details

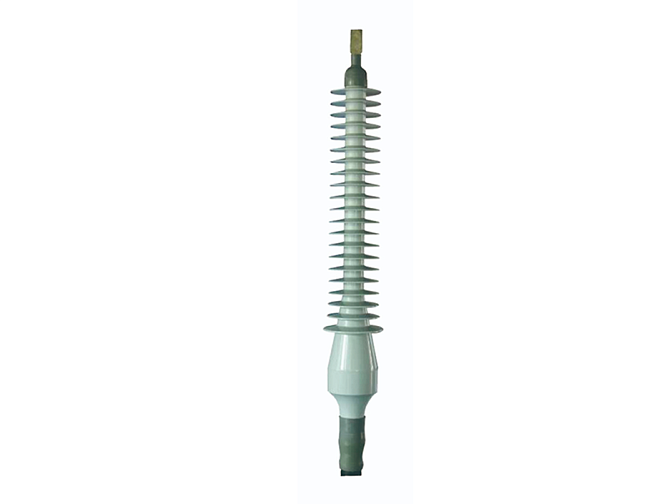

The joint consists of several modules made of weather-resistant rubber with high leakage current resistance. The joint includes an integrated stress cone to level the electric field, silicone skirts to extend the leakage path, and sealing tubes for moisture protection. Seamless manufacturing of the joints improves the mechanical and electrical properties of the surface.
MKU Design
- Connecting terminal
- Sealing tube
- Joint housing
- Heat-shrinkable tube
- Grounding lead
- Cable clamp
TECHNICAL SPECIFICATIONS MKU-110:
Maximum operating voltage Uₘ, kV: 126
Rated voltage U, kV: 110
Lightning impulse voltage, kV: 550
Test voltage (15 min.), kV: 160
Creepage distance, mm: ≥4500
Conductive core cross-sections, mm²: 240 ... 1600
Prepared cable insulation diameter range, mm: 56 ... 86
Maximum cable sheath diameter, mm *: 120
*More detailed specifications can be found in the catalog - DOWNLOAD FULL CATALOG
