High-voltage 110 kV metal-enclosed switchgear
Designed for the safe connection or branching of electrical circuits with a voltage of 110 kV.
Widely used in the construction and maintenance of power plants, industrial enterprises, and other energy facilities where a high level of reliability and electrical safety is required.

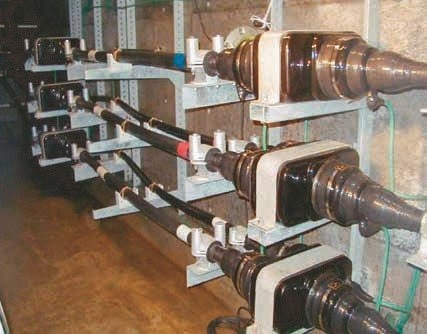

The robust housing of the branching joint protects internal components from moisture, dust, and mechanical damage. Inside the housing, there are metal conductors with high conductivity for transmitting electric current. Cable cores are connected using reliable clamps. The conductors and clamps are insulated with materials of high dielectric strength, preventing short circuits. Rubber stress cones (temperature range from -40°C to +60°C) or silicone stress cones (temperature range from -60°C to +50°C) are used to equalize the electric field stress. Sealing materials protect against moisture and corrosion, ensuring durability and reliability of the joint. The compact and convenient design facilitates installation.
*More detailed specifications can be found in the catalog - DOWNLOAD FULL CATALOG
MSO Design
MSO Design in Optional Housing
